.NET Core 2.1 WebAPI 根据Swagger.json自动生成客户端代码

2018 年 7 月 17 日 DotNet

（点击上方蓝字，可快速关注我们）

来源：长沙大鹏
cnblogs.com/hunanzp/p/9297361.html

前言

Swagger插件可以很方便的提供给接口开发者在线调试，但是实际上Swagger附带的功能还有很多，比如使用NSwag生成客户端调用代码，进一步解放接口开发者。

NSwag

NSwag是一个发布在GitHub上的开源项目，它可以根据Swagger说明页上的swagger.json文件生成C#、TypeScript客户端代码。

NSwag的项目地址:https://github.com/RSuter/NSwag

Nswag提供4种代码生成方法

1、使用 NSwagStudio，这是一款 Windows 桌面应用，用于在 C# 和 TypeScript 中为 API 生成客户端代码。

2、使用 NSwag.CodeGeneration.CSharp 或 NSwag.CodeGeneration.TypeScript NuGet 包在项目中执行代码生成。

3、使用命令行中的 NSwag。

4、使用 NSwag.MSBuild NuGet 包。

这里推荐使用NSwagStudio，可以从GitHub上下载该工具，地址:https://github.com/RSuter/NSwag/wiki/NSwagStudio

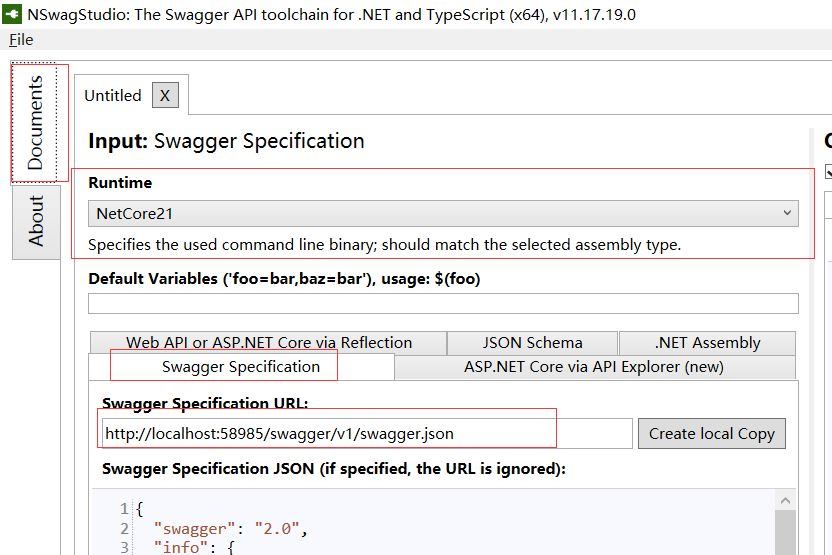

下载后开始安装，安装完毕后打开NSwagStudio，如下图，在左侧选择Tab页菜单里选择Documents

如上图框框选中的几点，我们需要留意。其中Swagger Specification URL就是我们WebAPI的swagger.json的在线地址。

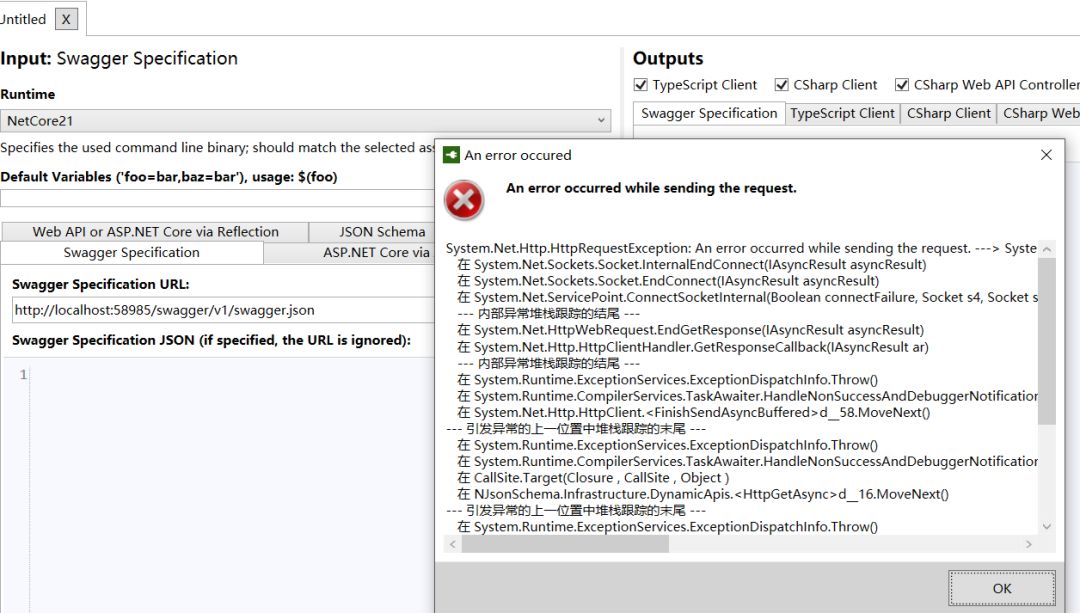

如果点击【Create local Copy 】按钮时你的WebAPI未在线则代码生成工具会弹出错误对话框，如下图:

所以采取读取Swagger Specification URL 方式进行生成代码的前提条件是你必须保证swagger.json文件能在线读取！

其次你可以选择RunTime（运行时），这里应该是服务端WebAPI的运行时(毕竟TypeScript是不关心你服务端是.NET Core还是.NET Framework).

因为我的环境是.NET Core2.1，所以这里选择NET Core21。

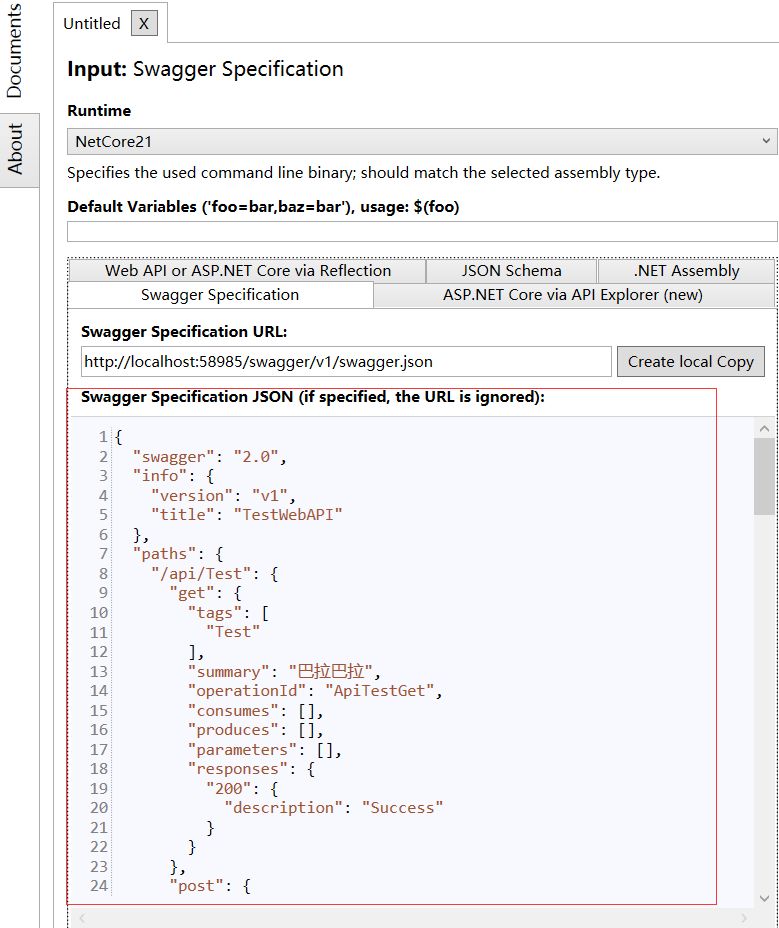

接下来，点击【Create local Copy】按钮，点击后NSwagStudio会与WebAPI服务端进行交互，成功后会将swagger.json文件格式化到左边的文本编辑器中，如下图:

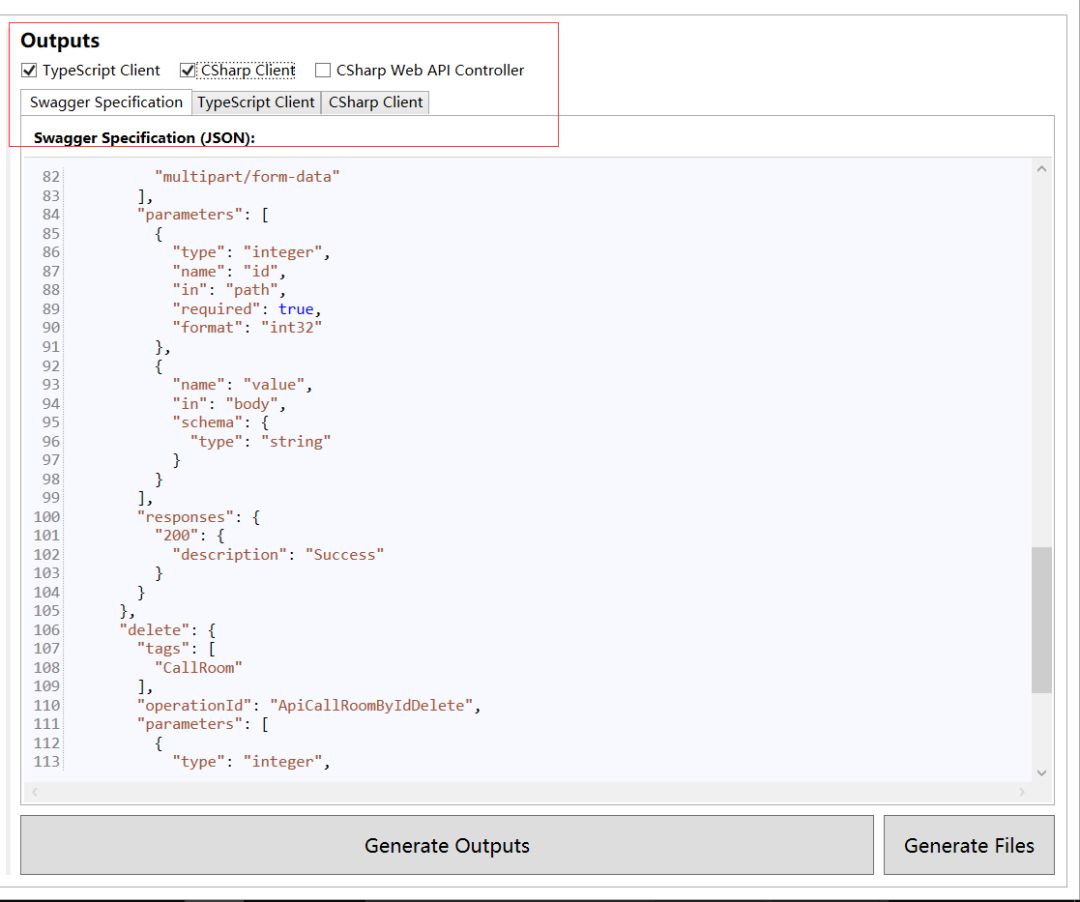

此时，你可以在右侧的Outputs中勾选你需要输出的文件格式，这里我选择TypeScript和CSharp Client，

这个地方有个C# WebAPI Controller，我有点纳闷，我都有swagger.json文件了绝壁是已经存在webapi了，

没有必要反向再去生成一遍webapi的控制器啦。不懂，反正只管生成客户端代码就好。

我们勾选好后下面就会出现相应的输出配合页面，如下图:

我们选择CSharp Client页面，该页面左侧分为Setting和Output两个页面，Setting页可以对输出的cs文件进行配置，如命名空间、类名称、输出文件路径等等(很多配置我也不会....)

我们点击【Generate Outputs】后NSwagStudio会根据配置生成客户端操作类，在Output页面即可检查，检查无误后再点击【Generate Files】可将类文件导出到配置的输出目录。

TypeScript亦是如此，同时NSwagStudio也可支持加载DLL反射生成，具体方法可根据官网操作(毕竟可以直接使用json文件在线生成没必要再自己手工选择dll..)

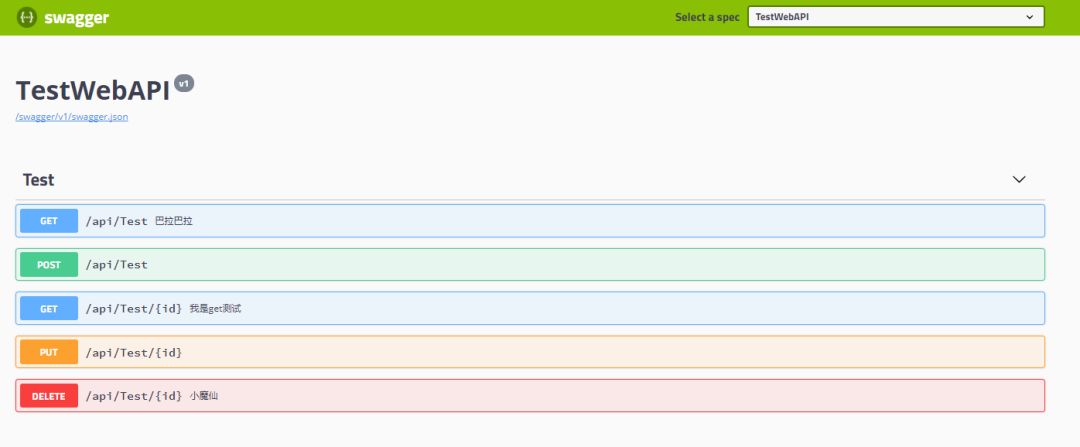

这里截图看SwagerUI页和NSwagStudio生成后的客户端cs文件

生成的客户端C#代码：

//----------------------

// <auto-generated>

// Generated using the NSwag toolchain v11.17.19.0 (NJsonSchema v9.10.58.0 (Newtonsoft.Json v9.0.0.0)) (http://NSwag.org)

// </auto-generated>

//----------------------

namespace Test

{

#pragma warning disable // Disable all warnings

[System.CodeDom.Compiler.GeneratedCode("NSwag", "11.17.19.0 (NJsonSchema v9.10.58.0 (Newtonsoft.Json v9.0.0.0))")]

public partial class Client

{

private string _baseUrl = "http://localhost:58985";

private System.Lazy<Newtonsoft.Json.JsonSerializerSettings> _settings;

public Client()

{

_settings = new System.Lazy<Newtonsoft.Json.JsonSerializerSettings>(() =>

{

var settings = new Newtonsoft.Json.JsonSerializerSettings();

UpdateJsonSerializerSettings(settings);

return settings;

});

}

public string BaseUrl

{

get { return _baseUrl; }

set { _baseUrl = value; }

}

protected Newtonsoft.Json.JsonSerializerSettings JsonSerializerSettings { get { return _settings.Value; } }

partial void UpdateJsonSerializerSettings(Newtonsoft.Json.JsonSerializerSettings settings);

partial void PrepareRequest(System.Net.Http.HttpClient client, System.Net.Http.HttpRequestMessage request, string url);

partial void PrepareRequest(System.Net.Http.HttpClient client, System.Net.Http.HttpRequestMessage request, System.Text.StringBuilder urlBuilder);

partial void ProcessResponse(System.Net.Http.HttpClient client, System.Net.Http.HttpResponseMessage response);

/// <summary>巴拉巴拉</summary>

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

public System.Threading.Tasks.Task ApiTestGetAsync()

{

return ApiTestGetAsync(System.Threading.CancellationToken.None);

}

/// <summary>巴拉巴拉</summary>

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

/// <param name="cancellationToken">A cancellation token that can be used by other objects or threads to receive notice of cancellation.</param>

public async System.Threading.Tasks.Task ApiTestGetAsync(System.Threading.CancellationToken cancellationToken)

{

var urlBuilder_ = new System.Text.StringBuilder();

urlBuilder_.Append(BaseUrl != null ? BaseUrl.TrimEnd('/') : "").Append("/api/Test");

var client_ = new System.Net.Http.HttpClient();

try

{

using (var request_ = new System.Net.Http.HttpRequestMessage())

{

request_.Method = new System.Net.Http.HttpMethod("GET");

PrepareRequest(client_, request_, urlBuilder_);

var url_ = urlBuilder_.ToString();

request_.RequestUri = new System.Uri(url_, System.UriKind.RelativeOrAbsolute);

PrepareRequest(client_, request_, url_);

var response_ = await client_.SendAsync(request_, System.Net.Http.HttpCompletionOption.ResponseHeadersRead, cancellationToken).ConfigureAwait(false);

try

{

var headers_ = System.Linq.Enumerable.ToDictionary(response_.Headers, h_ => h_.Key, h_ => h_.Value);

if (response_.Content != null && response_.Content.Headers != null)

{

foreach (var item_ in response_.Content.Headers)

headers_[item_.Key] = item_.Value;

}

ProcessResponse(client_, response_);

var status_ = ((int)response_.StatusCode).ToString();

if (status_ == "200")

{

return;

}

else

if (status_ != "200" && status_ != "204")

{

var responseData_ = response_.Content == null ? null : await response_.Content.ReadAsStringAsync().ConfigureAwait(false);

throw new SwaggerException("The HTTP status code of the response was not expected (" + (int)response_.StatusCode + ").", (int)response_.StatusCode, responseData_, headers_, null);

}

}

finally

{

if (response_ != null)

response_.Dispose();

}

}

}

finally

{

if (client_ != null)

client_.Dispose();

}

}

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

public System.Threading.Tasks.Task ApiTestPostAsync(string value)

{

return ApiTestPostAsync(value, System.Threading.CancellationToken.None);

}

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

/// <param name="cancellationToken">A cancellation token that can be used by other objects or threads to receive notice of cancellation.</param>

public async System.Threading.Tasks.Task ApiTestPostAsync(string value, System.Threading.CancellationToken cancellationToken)

{

var urlBuilder_ = new System.Text.StringBuilder();

urlBuilder_.Append(BaseUrl != null ? BaseUrl.TrimEnd('/') : "").Append("/api/Test");

var client_ = new System.Net.Http.HttpClient();

try

{

using (var request_ = new System.Net.Http.HttpRequestMessage())

{

var content_ = new System.Net.Http.StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(value, _settings.Value));

content_.Headers.ContentType = System.Net.Http.Headers.MediaTypeHeaderValue.Parse("multipart/form-data");

request_.Content = content_;

request_.Method = new System.Net.Http.HttpMethod("POST");

PrepareRequest(client_, request_, urlBuilder_);

var url_ = urlBuilder_.ToString();

request_.RequestUri = new System.Uri(url_, System.UriKind.RelativeOrAbsolute);

PrepareRequest(client_, request_, url_);

var response_ = await client_.SendAsync(request_, System.Net.Http.HttpCompletionOption.ResponseHeadersRead, cancellationToken).ConfigureAwait(false);

try

{

var headers_ = System.Linq.Enumerable.ToDictionary(response_.Headers, h_ => h_.Key, h_ => h_.Value);

if (response_.Content != null && response_.Content.Headers != null)

{

foreach (var item_ in response_.Content.Headers)

headers_[item_.Key] = item_.Value;

}

ProcessResponse(client_, response_);

var status_ = ((int)response_.StatusCode).ToString();

if (status_ == "200")

{

return;

}

else

if (status_ != "200" && status_ != "204")

{

var responseData_ = response_.Content == null ? null : await response_.Content.ReadAsStringAsync().ConfigureAwait(false);

throw new SwaggerException("The HTTP status code of the response was not expected (" + (int)response_.StatusCode + ").", (int)response_.StatusCode, responseData_, headers_, null);

}

}

finally

{

if (response_ != null)

response_.Dispose();

}

}

}

finally

{

if (client_ != null)

client_.Dispose();

}

}

/// <summary>我是get测试</summary>

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

public System.Threading.Tasks.Task<string> ApiTestByIdGetAsync(int id)

{

return ApiTestByIdGetAsync(id, System.Threading.CancellationToken.None);

}

/// <summary>我是get测试</summary>

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

/// <param name="cancellationToken">A cancellation token that can be used by other objects or threads to receive notice of cancellation.</param>

public async System.Threading.Tasks.Task<string> ApiTestByIdGetAsync(int id, System.Threading.CancellationToken cancellationToken)

{

if (id == null)

throw new System.ArgumentNullException("id");

var urlBuilder_ = new System.Text.StringBuilder();

urlBuilder_.Append(BaseUrl != null ? BaseUrl.TrimEnd('/') : "").Append("/api/Test/{id}");

urlBuilder_.Replace("{id}", System.Uri.EscapeDataString(ConvertToString(id, System.Globalization.CultureInfo.InvariantCulture)));

var client_ = new System.Net.Http.HttpClient();

try

{

using (var request_ = new System.Net.Http.HttpRequestMessage())

{

request_.Method = new System.Net.Http.HttpMethod("GET");

request_.Headers.Accept.Add(new System.Net.Http.Headers.MediaTypeWithQualityHeaderValue("application/json"));

PrepareRequest(client_, request_, urlBuilder_);

var url_ = urlBuilder_.ToString();

request_.RequestUri = new System.Uri(url_, System.UriKind.RelativeOrAbsolute);

PrepareRequest(client_, request_, url_);

var response_ = await client_.SendAsync(request_, System.Net.Http.HttpCompletionOption.ResponseHeadersRead, cancellationToken).ConfigureAwait(false);

try

{

var headers_ = System.Linq.Enumerable.ToDictionary(response_.Headers, h_ => h_.Key, h_ => h_.Value);

if (response_.Content != null && response_.Content.Headers != null)

{

foreach (var item_ in response_.Content.Headers)

headers_[item_.Key] = item_.Value;

}

ProcessResponse(client_, response_);

var status_ = ((int)response_.StatusCode).ToString();

if (status_ == "200")

{

var responseData_ = response_.Content == null ? null : await response_.Content.ReadAsStringAsync().ConfigureAwait(false);

var result_ = default(string);

try

{

result_ = Newtonsoft.Json.JsonConvert.DeserializeObject<string>(responseData_, _settings.Value);

return result_;

}

catch (System.Exception exception_)

{

throw new SwaggerException("Could not deserialize the response body.", (int)response_.StatusCode, responseData_, headers_, exception_);

}

}

else

if (status_ != "200" && status_ != "204")

{

var responseData_ = response_.Content == null ? null : await response_.Content.ReadAsStringAsync().ConfigureAwait(false);

throw new SwaggerException("The HTTP status code of the response was not expected (" + (int)response_.StatusCode + ").", (int)response_.StatusCode, responseData_, headers_, null);

}

return default(string);

}

finally

{

if (response_ != null)

response_.Dispose();

}

}

}

finally

{

if (client_ != null)

client_.Dispose();

}

}

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

public System.Threading.Tasks.Task ApiTestByIdPutAsync(int id, string value)

{

return ApiTestByIdPutAsync(id, value, System.Threading.CancellationToken.None);

}

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

/// <param name="cancellationToken">A cancellation token that can be used by other objects or threads to receive notice of cancellation.</param>

public async System.Threading.Tasks.Task ApiTestByIdPutAsync(int id, string value, System.Threading.CancellationToken cancellationToken)

{

if (id == null)

throw new System.ArgumentNullException("id");

var urlBuilder_ = new System.Text.StringBuilder();

urlBuilder_.Append(BaseUrl != null ? BaseUrl.TrimEnd('/') : "").Append("/api/Test/{id}");

urlBuilder_.Replace("{id}", System.Uri.EscapeDataString(ConvertToString(id, System.Globalization.CultureInfo.InvariantCulture)));

var client_ = new System.Net.Http.HttpClient();

try

{

using (var request_ = new System.Net.Http.HttpRequestMessage())

{

var content_ = new System.Net.Http.StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(value, _settings.Value));

content_.Headers.ContentType = System.Net.Http.Headers.MediaTypeHeaderValue.Parse("multipart/form-data");

request_.Content = content_;

request_.Method = new System.Net.Http.HttpMethod("PUT");

PrepareRequest(client_, request_, urlBuilder_);

var url_ = urlBuilder_.ToString();

request_.RequestUri = new System.Uri(url_, System.UriKind.RelativeOrAbsolute);

PrepareRequest(client_, request_, url_);

var response_ = await client_.SendAsync(request_, System.Net.Http.HttpCompletionOption.ResponseHeadersRead, cancellationToken).ConfigureAwait(false);

try

{

var headers_ = System.Linq.Enumerable.ToDictionary(response_.Headers, h_ => h_.Key, h_ => h_.Value);

if (response_.Content != null && response_.Content.Headers != null)

{

foreach (var item_ in response_.Content.Headers)

headers_[item_.Key] = item_.Value;

}

ProcessResponse(client_, response_);

var status_ = ((int)response_.StatusCode).ToString();

if (status_ == "200")

{

return;

}

else

if (status_ != "200" && status_ != "204")

{

var responseData_ = response_.Content == null ? null : await response_.Content.ReadAsStringAsync().ConfigureAwait(false);

throw new SwaggerException("The HTTP status code of the response was not expected (" + (int)response_.StatusCode + ").", (int)response_.StatusCode, responseData_, headers_, null);

}

}

finally

{

if (response_ != null)

response_.Dispose();

}

}

}

finally

{

if (client_ != null)

client_.Dispose();

}

}

/// <summary>小魔仙</summary>

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

public System.Threading.Tasks.Task ApiTestByIdDeleteAsync(int id)

{

return ApiTestByIdDeleteAsync(id, System.Threading.CancellationToken.None);

}

/// <summary>小魔仙</summary>

/// <returns>Success</returns>

/// <exception cref="SwaggerException">A server side error occurred.</exception>

/// <param name="cancellationToken">A cancellation token that can be used by other objects or threads to receive notice of cancellation.</param>

public async System.Threading.Tasks.Task ApiTestByIdDeleteAsync(int id, System.Threading.CancellationToken cancellationToken)

{

if (id == null)

throw new System.ArgumentNullException("id");

var urlBuilder_ = new System.Text.StringBuilder();

urlBuilder_.Append(BaseUrl != null ? BaseUrl.TrimEnd('/') : "").Append("/api/Test/{id}");

urlBuilder_.Replace("{id}", System.Uri.EscapeDataString(ConvertToString(id, System.Globalization.CultureInfo.InvariantCulture)));

var client_ = new System.Net.Http.HttpClient();

try

{

using (var request_ = new System.Net.Http.HttpRequestMessage())

{

request_.Method = new System.Net.Http.HttpMethod("DELETE");

PrepareRequest(client_, request_, urlBuilder_);

var url_ = urlBuilder_.ToString();

request_.RequestUri = new System.Uri(url_, System.UriKind.RelativeOrAbsolute);

PrepareRequest(client_, request_, url_);

var response_ = await client_.SendAsync(request_, System.Net.Http.HttpCompletionOption.ResponseHeadersRead, cancellationToken).ConfigureAwait(false);

try

{

var headers_ = System.Linq.Enumerable.ToDictionary(response_.Headers, h_ => h_.Key, h_ => h_.Value);

if (response_.Content != null && response_.Content.Headers != null)

{

foreach (var item_ in response_.Content.Headers)

headers_[item_.Key] = item_.Value;

}

ProcessResponse(client_, response_);

var status_ = ((int)response_.StatusCode).ToString();

if (status_ == "200")

{

return;

}

else

if (status_ != "200" && status_ != "204")

{

var responseData_ = response_.Content == null ? null : await response_.Content.ReadAsStringAsync().ConfigureAwait(false);

throw new SwaggerException("The HTTP status code of the response was not expected (" + (int)response_.StatusCode + ").", (int)response_.StatusCode, responseData_, headers_, null);

}

}

finally

{

if (response_ != null)

response_.Dispose();

}

}

}

finally

{

if (client_ != null)

client_.Dispose();

}

}

private string ConvertToString(object value, System.Globalization.CultureInfo cultureInfo)

{

if (value is System.Enum)

{

string name = System.Enum.GetName(value.GetType(), value);

if (name != null)

{

var field = System.Reflection.IntrospectionExtensions.GetTypeInfo(value.GetType()).GetDeclaredField(name);

if (field != null)

{

var attribute = System.Reflection.CustomAttributeExtensions.GetCustomAttribute(field, typeof(System.Runtime.Serialization.EnumMemberAttribute))

as System.Runtime.Serialization.EnumMemberAttribute;

if (attribute != null)

{

return attribute.Value;

}

}

}

}

else if (value is byte[])

{

return System.Convert.ToBase64String((byte[]) value);

}

else if (value != null && value.GetType().IsArray)

{

var array = System.Linq.Enumerable.OfType<object>((System.Array) value);

return string.Join(",", System.Linq.Enumerable.Select(array, o => ConvertToString(o, cultureInfo)));

}

return System.Convert.ToString(value, cultureInfo);

}

}

[System.CodeDom.Compiler.GeneratedCode("NSwag", "11.17.19.0 (NJsonSchema v9.10.58.0 (Newtonsoft.Json v9.0.0.0))")]

public partial class SwaggerException : System.Exception

{

public int StatusCode { get; private set; }

public string Response { get; private set; }

public System.Collections.Generic.Dictionary<string, System.Collections.Generic.IEnumerable<string>> Headers { get; private set; }

public SwaggerException(string message, int statusCode, string response, System.Collections.Generic.Dictionary<string, System.Collections.Generic.IEnumerable<string>> headers, System.Exception innerException)

: base(message, innerException)

{

StatusCode = statusCode;

Response = response;

Headers = headers;

}

public override string ToString()

{

return string.Format("HTTP Response: \n\n{0}\n\n{1}", Response, base.ToString());

}

}

[System.CodeDom.Compiler.GeneratedCode("NSwag", "11.17.19.0 (NJsonSchema v9.10.58.0 (Newtonsoft.Json v9.0.0.0))")]

public partial class SwaggerException<TResult> : SwaggerException

{

public TResult Result { get; private set; }

public SwaggerException(string message, int statusCode, string response, System.Collections.Generic.Dictionary<string, System.Collections.Generic.IEnumerable<string>> headers, TResult result, System.Exception innerException)

: base(message, statusCode, response, headers, innerException)

{

Result = result;

}

}

}
