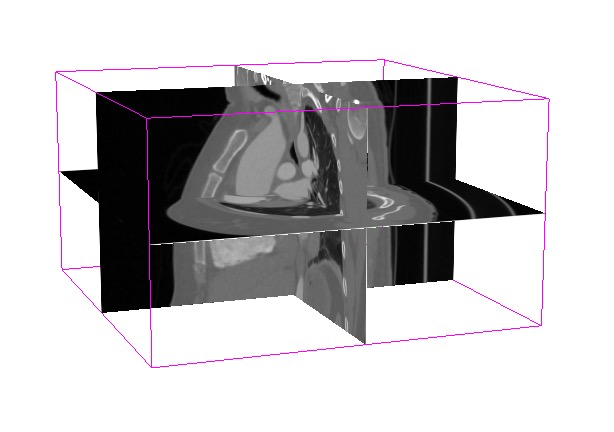

FEAorta: A Fully Automated Framework for Finite Element Analysis of the Aorta From 3D CT Images

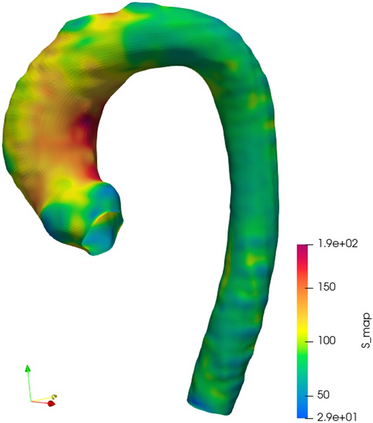

Aortic aneurysm disease ranks consistently in the top 20 causes of death in the U.S. population. Thoracic aortic aneurysm is manifested as an abnormal bulging of thoracic aortic wall and it is a leading cause of death in adults. From the perspective of biomechanics, rupture occurs when the stress acting on the aortic wall exceeds the wall strength. Wall stress distribution can be obtained by computational biomechanical analyses, especially structural Finite Element Analysis. For risk assessment, probabilistic rupture risk of TAA can be calculated by comparing stress with material strength using a material failure model. Although these engineering tools are currently available for TAA rupture risk assessment on patient specific level, clinical adoption has been limited due to two major barriers: labor intensive 3D reconstruction current patient specific anatomical modeling still relies on manual segmentation, making it time consuming and difficult to scale to a large patient population, and computational burden traditional FEA simulations are resource intensive and incompatible with time sensitive clinical workflows. The second barrier was successfully overcome by our team through the development of the PyTorch FEA library and the FEA DNN integration framework. By incorporating the FEA functionalities within PyTorch FEA and applying the principle of static determinacy, we reduced the FEA based stress computation time to approximately three minutes per case. Moreover, by integrating DNN and FEA through the PyTorch FEA library, our approach further decreases the computation time to only a few seconds per case. This work focuses on overcoming the first barrier through the development of an end to end deep neural network capable of generating patient specific finite element meshes of the aorta directly from 3D CT images.
