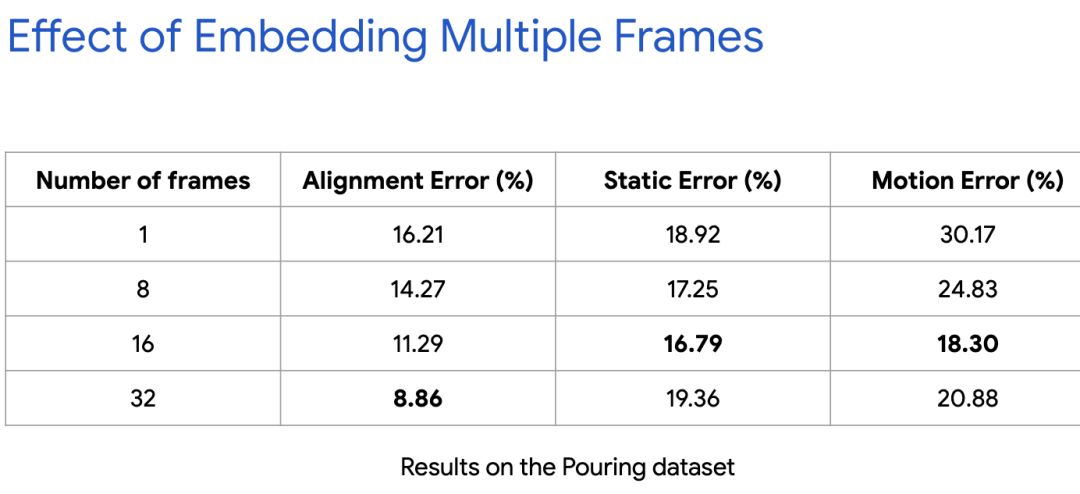

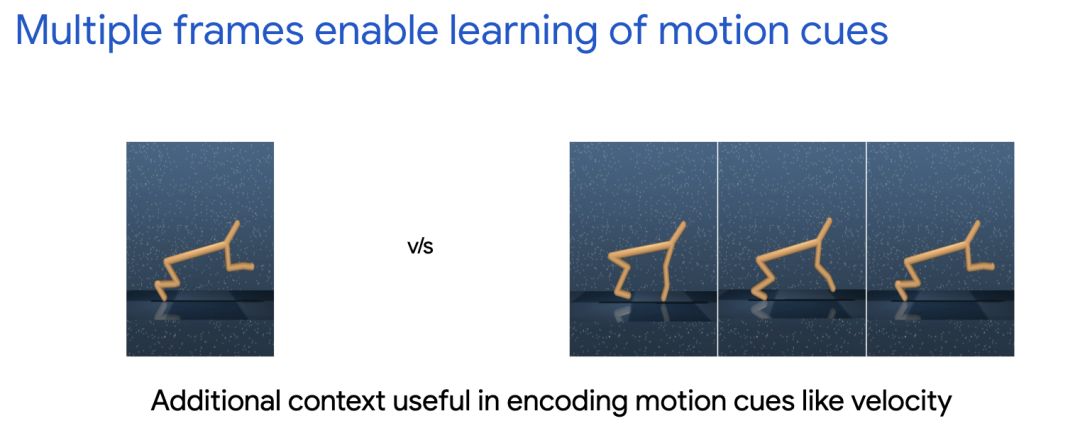

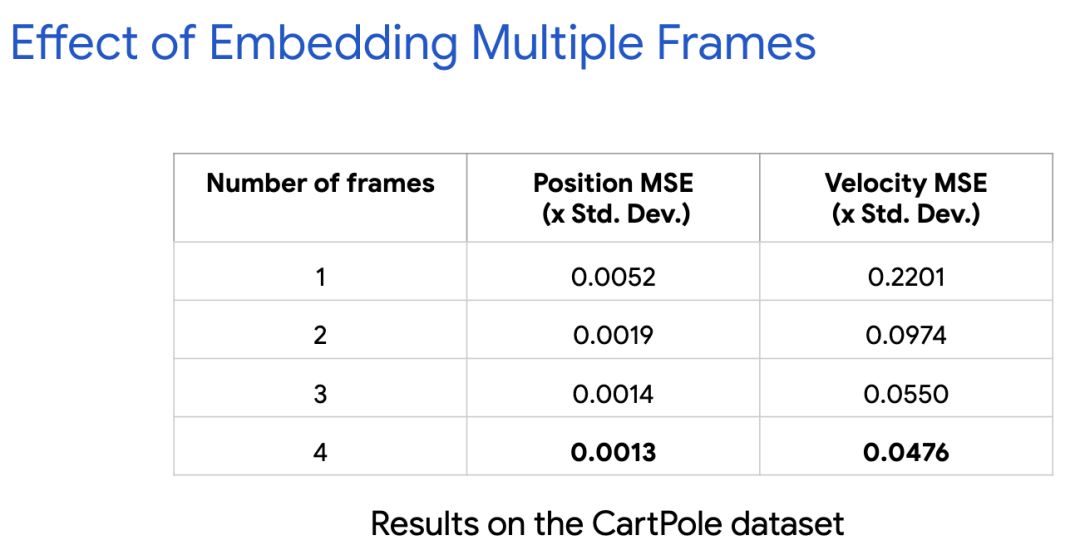

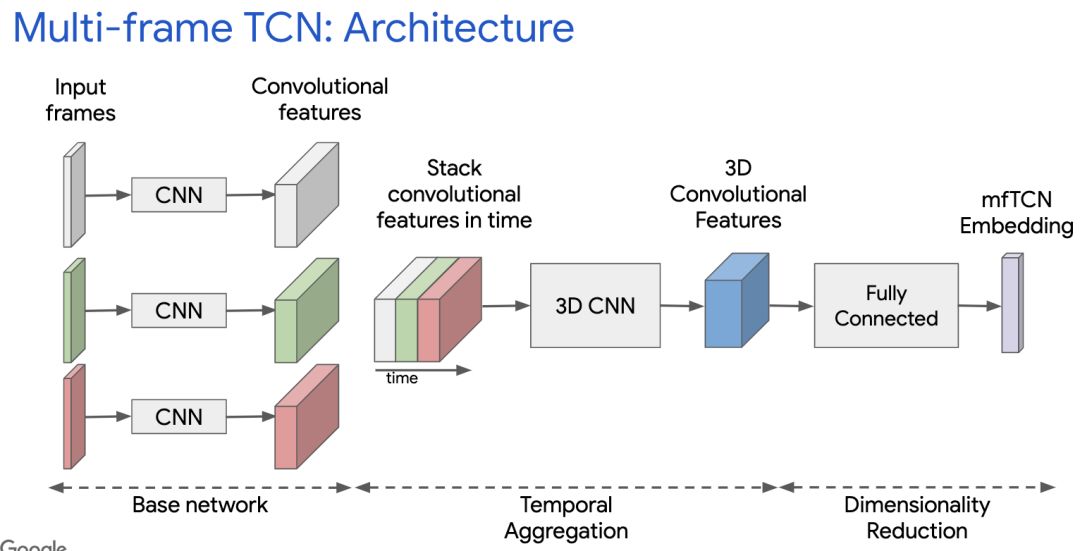

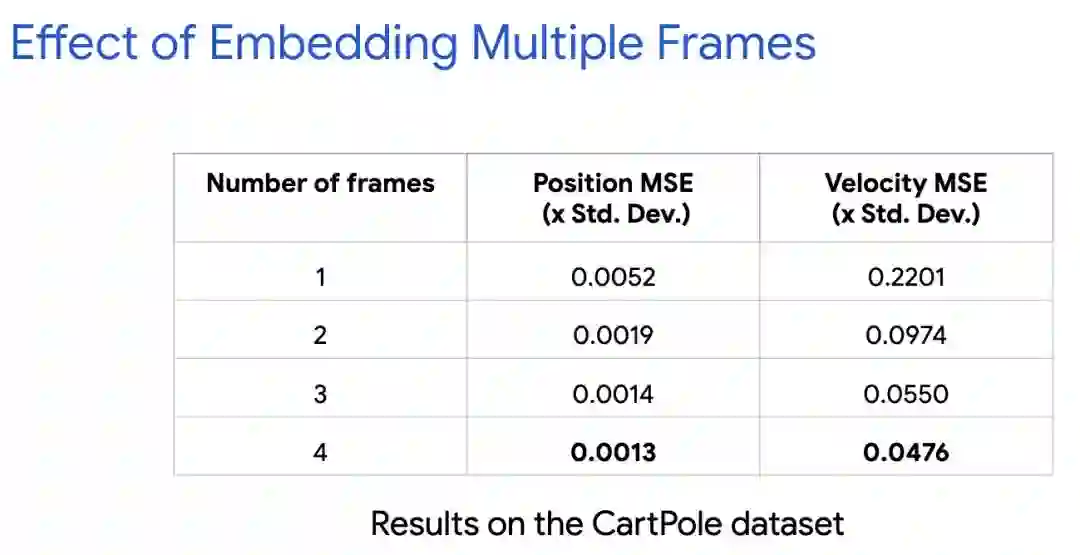

TCN v2 + 3Dconv 运动信息

tcn v2

https://sites.google.com/view/actionablerepresentations

tcn v1

https://github.com/tensorflow/models/tree/master/research/tcn

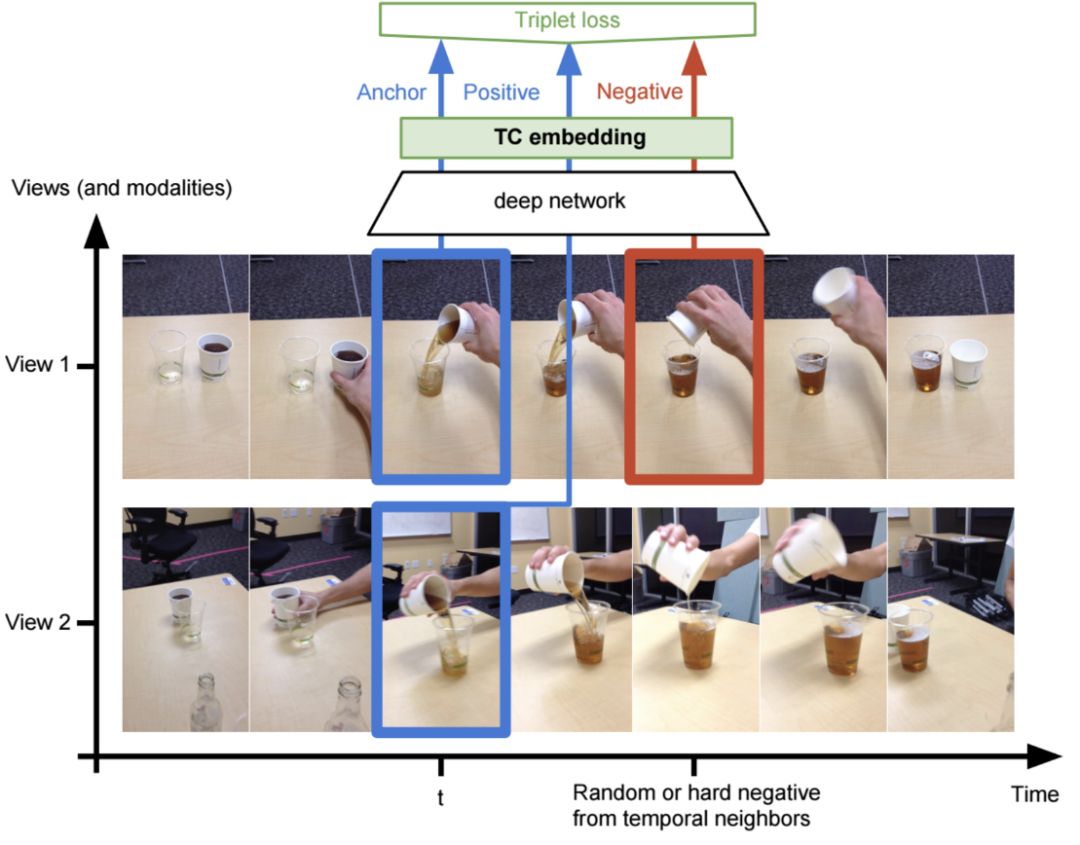

Time Contrastive Networks

This implements "Time Contrastive Networks", which is part of the larger Self-Supervised Imitation Learning project.Contacts

Maintainers of TCN:

• Corey Lynch: github, twitter

• Pierre Sermanet: github, twitter

Contents

• Getting Started

• Install Dependencies

• Download the Inception v3 Checkpoint

• Run all the tests

• Concepts

• Nearest Neighbor Imitation Videos

• PCA & T-SNE Visualization

• KNN Classification Error

• KNN Classification Error

• Multi-view Webcam Video

• Data Pipelines

• Estimators

• Models

• Losses

• Inference

• Configuration

• Monitoring Training

• Visualization

• Tutorial Part I: Collecting Multi-View Webcam Videos

• Collect Webcam Videos

• Create TFRecords

• Tutorial Part II: Training, Evaluation, and Visualization

• Generate Imitation Videos

• Run PCA & T-SNE Visualization

• Download Data

• Download the Inception v3 Checkpoint

• Define a Config

• Train

• Evaluate

• Monitor training

• Visualize

Getting started

Install Dependencies

• Tensorflow nightly build or via pip install tf-nightly-gpu.

• Bazel

• matplotlib

• sklearn

• opencv

Download Pretrained InceptionV3 Checkpoint

Run the script that downloads the pretrained InceptionV3 checkpoint:

cd tensorflow-models/tcnpython download_pretrained.py

Run all the tests

bazel test :all

Concepts

Multi-View Webcam Video

We provide utilities to collect your own multi-view videos in dataset/webcam.py. See the webcam tutorial for an end to end example of how to collect multi-view webcam data and convert it to the TFRecord format expected by this library.

Data Pipelines

We use the tf.data.Dataset API to construct input pipelines that feed training, evaluation, and visualization. These pipelines are defined in data_providers.py.

Estimators

We define training, evaluation, and inference behavior using the tf.estimator.Estimator API. Seeestimators/mvtcn_estimator.py for an example of how multi-view TCN training, evaluation, and inference is implemented.

Models

Different embedder architectures are implemented in model.py. We used the InceptionConvSSFCEmbedder in the pouring experiments, but we're also evaluating Resnet embedders.

Losses

We use the tf.contrib.losses.metric_learning library's implementations of triplet loss with semi-hard negative mining and npairs loss. In our experiments, npairs loss has better empirical convergence and produces the best qualitative visualizations, and will likely be our choice for future experiments. See the paper for details on the algorithm.

Inference

We support 3 modes of inference for trained TCN models:

• Mode 1: Input is a tf.Estimator input_fn (see this for details). Output is an iterator over embeddings and additional metadata. See labeled_eval.py for a usage example.

• Mode 2: Input is a TFRecord or (or list of TFRecords). This returns an iterator over tuples of (embeddings, raw_image_strings, sequence_name), where embeddings is the [num views, sequence length, embedding size] numpy array holding the full embedded sequence (for all views), raw_image_strings is a [num views, sequence length] string array holding the jpeg-encoded raw image strings, and sequence_name is the name of the sequence. See generate_videos.py for a usage example.

• Mode 3: Input is a numpy array of size [num images, height, width, num channels]. This returns a tuple of (embeddings, raw_image_strings), where embeddings is a 2-D float32 numpy array holding [num_images, embedding_size] image embeddings, and raw_image_strings is a 1-D string numpy array holding [batch_size] jpeg-encoded image strings. This can be used as follows:

  images = np.random.uniform(0, 1, size=(batch_size, 1080, 1920, 3))embeddings, _ = estimator.inference(images, checkpoint_path=checkpoint_path)

See estimators/base_estimator.py for details.

Configuration

Data pipelines, training, eval, and visualization are all configured using key-value parameters passed as YAML files. Configurations can be nested, e.g.:

learning:  optimizer: 'adam'learning_rate: 0.001

T objects

YAML configs are converted to LuaTable-like T object (see utils/luatables.py), which behave like a python dict, but allow you to use dot notation to access (nested) keys. For example we could access the learning rate in the above config snippet via config.learning.learning_rate.

Multiple Configs

Multiple configs can be passed to the various binaries as a comma separated list of config paths via the --config_paths flag. This allows us to specify a default config that applies to all experiments (e.g. how often to write checkpoints, default embedder hyperparams) and one config per experiment holding the just hyperparams specific to the experiment (path to data, etc.).

See configs/tcn_default.yml for an example of our default config and configs/pouring.yml for an example of how we define the pouring experiments.

Configs are applied left to right. For example, consider two config files:

default.yml

learning:  learning_rate: 0.001 # Default learning rate.optimizer: 'adam'

myexperiment.yml

learning:  learning_rate: 1.0 # Experiment learning rate (overwrites default).data:  training: '/path/to/myexperiment/training.tfrecord'

Running

bazel run train.py --config_paths='default.yml,myexperiment.yml'

results in a final merged config called final_training_config.yml

learning:  optimizer: 'adam'learning_rate: 1.0data:  training: '/path/to/myexperiment/training.tfrecord'

which is created automatically and stored in the experiment log directory alongside model checkpoints and tensorboard summaries. This gives us a record of the exact configs that went into each trial.

Monitoring training

We usually look at two validation metrics during training: knn classification error and multi-view alignment.

KNN-Classification Error

In cases where we have labeled validation data, we can compute the average cross-sequence KNN classification error (1.0 - recall@k=1) over all embedded labeled images in the validation set. See labeled_eval.py.

Multi-view Alignment

In cases where there is no labeled validation data, we can look at the how well our model aligns multiple views of same embedded validation sequences. That is, for each embedded validation sequence, for all cross-view pairs, we compute the scaled absolute distance between ground truth time indices and knn time indices. See alignment.py.

Visualization

We visualize the embedding space learned by our models in two ways: nearest neighbor imitation videos and PCA/T-SNE.

Nearest Neighbor Imitation Videos

One of the easiest way to evaluate the understanding of your model is to see how well the model can semantically align two videos via nearest neighbors in embedding space.

Consider the case where we have multiple validation demo videos of a human or robot performing the same task. For example, in the pouring experiments, we collected many different multiview validation videos of a person pouring the contents of one container into another, then setting the container down. If we'd like to see how well our embeddings generalize across viewpoint, object/agent appearance, and background, we can construct what we call "Nearest Neighbor Imitation" videos, by embedding some validation query sequence i from view 1, and finding the nearest neighbor for each query frame in some embedded target sequence j filmed from view 1. Here's an example of the final product.

See generate_videos.py for details.

PCA & T-SNE Visualization

We can also embed a set of images taken randomly from validation videos and visualize the embedding space using PCA projection and T-SNE in the tensorboard projector. See visualize_embeddings.py for details.

Tutorial Part I: Collecting Multi-View Webcam Videos

Here we give an end-to-end example of how to collect your own multiview webcam videos and convert them to the TFRecord format expected by training.

Note: This was tested with up to 8 concurrent Logitech c930e webcams extended with Plugable 5 Meter (16 Foot) USB 2.0 Active Repeater Extension Cables.

Collect webcam videos

Go to dataset/webcam.py

1. Plug your webcams in and run

   ls -ltrh /dev/video*

   You should see one device listed per connected webcam.

2. Define some environment variables describing the dataset you're collecting.

   dataset=tutorial  # Name of the dataset.mode=train  # E.g. 'train', 'validation', 'test', 'demo'.num_views=2 # Number of webcams.viddir=/tmp/tcn/videos # Output directory for the videos.tmp_imagedir=/tmp/tcn/tmp_images # Temp directory to hold images.debug_vids=1 # Whether or not to generate side-by-side debug videos.export DISPLAY=:0.0  # This allows real time matplotlib display.

3. Run the webcam.py script.

   bazel build -c opt --copt=-mavx webcam && \bazel-bin/webcam \--dataset $dataset \--mode $mode \--num_views $num_views \--tmp_imagedir $tmp_imagedir \--viddir $viddir \--debug_vids 1

4. Hit Ctrl-C when done collecting, upon which the script will compile videos for each view and optionally a debug video concatenating multiple simultaneous views.

5. If --seqname flag isn't set, the script will name the first sequence '0', the second sequence '1', and so on (meaning you can just keep rerunning step 3.). When you are finished, you should see an output viddir with the following structure:

   videos/0_view0.movvideos/0_view1.mov...videos/0_viewM.movvideos/1_viewM.mov...videos/N_viewM.movfor N sequences and M webcam views.

Create TFRecords

Use dataset/videos_to_tfrecords.py to convert the directory of videos into a directory of TFRecords files, one per multi-view sequence.

viddir=/tmp/tcn/videosdataset=tutorialmode=trainvideos=$viddir/$datasetbazel build -c opt videos_to_tfrecords && \bazel-bin/videos_to_tfrecords --logtostderr \--input_dir $videos/$mode \--output_dir ~/tcn_data/$dataset/$mode \--max_per_shard 400

Setting --max_per_shard > 0 allows you to shard training data. We've observed that sharding long training sequences provides better performance in terms of global steps/sec.

This should be left at the default of 0 for validation / test data.

You should now have a directory of TFRecords files with the following structure:

output_dir/0.tfrecord...output_dir/N.tfrecord1 TFRecord file for each of N multi-view sequences.

Now we're ready to move on to part II: training, evaluation, and visualization.

Tutorial Part II: Training, Evaluation, and Visualization

Here we give an end-to-end example of how to train, evaluate, and visualize the embedding space learned by TCN models.

Download Data

We will be using the 'Multiview Pouring' dataset, which can be downloaded using the download.sh script here.

The rest of the tutorial will assume that you have your data downloaded to a folder at ~/tcn_data.

mkdir ~/tcn_datamv ~/Downloads/download.sh ~/tcn_data./download.sh

You should now have the following path containing all the data:

ls ~/tcn_data/multiview-pouringlabels  README.txt  tfrecords  videos

Download Pretrained Inception Checkpoint

If you haven't already, run the script that downloads the pretrained InceptionV3 checkpoint:

python download_pretrained.py

Define A Config

For our experiment, we create 2 configs:

• configs/tcn_default.yml: This contains all the default hyperparameters that generally don't vary across experiments.

• configs/pouring.yml: This contains all the hyperparameters that are specific to the pouring experiment.

Important note about configs/pouring.yml:

• data.eval_cropping: We use 'pad200' for the pouring dataset, which was filmed rather close up on iphone cameras. A better choice for data filmed on webcam is likely 'crop_center'. See preprocessing.py for options.

Train

Run the training binary:

logdir=/tmp/tcn/pouringc=configsconfigs=$c/tcn_default.yml,$c/pouring.ymlbazel build -c opt --copt=-mavx --config=cuda train && \bazel-bin/train \--config_paths $configs --logdir $logdir

Evaluate

Run the binary that computes running validation loss. Set export CUDA_VISIBLE_DEVICES= to run on CPU.

bazel build -c opt --copt=-mavx eval && \bazel-bin/eval \--config_paths $configs --logdir $logdir

Run the binary that computes running validation cross-view sequence alignment. Set export CUDA_VISIBLE_DEVICES= to run on CPU.

bazel build -c opt --copt=-mavx alignment && \bazel-bin/alignment \--config_paths $configs --checkpointdir $logdir --outdir $logdir

Run the binary that computes running labeled KNN validation error. Set export CUDA_VISIBLE_DEVICES= to run on CPU.

bazel build -c opt --copt=-mavx labeled_eval && \bazel-bin/labeled_eval \--config_paths $configs --checkpointdir $logdir --outdir $logdir

Monitor training

Run tensorboard --logdir=$logdir. After a bit of training, you should see curves that look like this:

Training lossValidation lossValidation AlignmentAverage Validation KNN Classification ErrorIndividual Validation KNN Classification ErrorsVisualize

To visualize the embedding space learned by a model, we can:

Generate Imitation Videos

# Use the automatically generated final config file as config.configs=$logdir/final_training_config.yml# Visualize checkpoint 40001.checkpoint_iter=40001# Use validation records for visualization.records=~/tcn_data/multiview-pouring/tfrecords/val# Write videos to this location.outdir=$logdir/tcn_viz/imitation_vids

bazel build -c opt --config=cuda --copt=-mavx generate_videos && \bazel-bin/generate_videos \--config_paths $configs \--checkpointdir $logdir \--checkpoint_iter $checkpoint_iter \--query_records_dir $records \--target_records_dir $records \--outdir $outdir

After the script completes, you should see a directory of videos with names like:

$outdir/qtrain_clearodwalla_to_clear1_realv1_imtrain_clearsoda_to_white13_realv0.mp4

that look like this:

T-SNE / PCA Visualization

Run the binary that generates embeddings and metadata.

outdir=$logdir/tcn_viz/embedding_vizbazel build -c opt --config=cuda --copt=-mavx visualize_embeddings && \bazel-bin/visualize_embeddings \--config_paths $configs \--checkpointdir $logdir \--checkpoint_iter $checkpoint_iter \--embedding_records $records \--outdir $outdir \--num_embed 1000 \--sprite_dim 64

Run tensorboard, pointed at the embedding viz output directory.

tensorboard --logdir=$outdir

You should see something like this in tensorboard.
